Carbon fiber packing

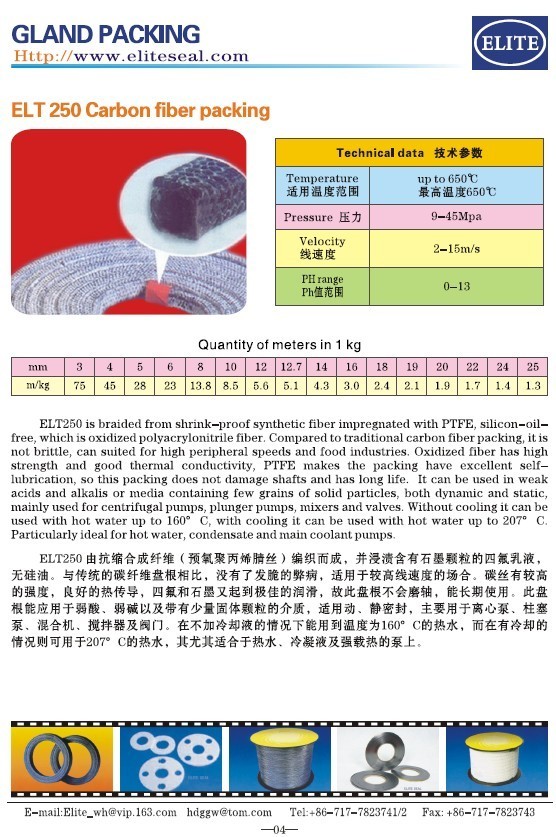

Product Overview： ELT250 is woven from shrink-resistant synthetic fibers (pre-oxidized polyacrylonitrile filaments) and impregnated with a graphite-particle-containing tetrafluoroethylene emulsion, silicone-free. Compared with traditional carbon fiber packing, it eliminates brittleness and is suitable for higher linear speeds. The carbon fiber has high strength and good thermal conductivity, while the PTFE and graphite provide excellent lubrication, so the packing will not wear the shaft and can be used for a long time. This packing can be used in weakly acidic, weakly alkaline, and media containing a small amount of solid particles, suitable for dynamic and static sealing, mainly used in centrifugal pumps, plunger pumps, mixers, agitators, and valves. It can be used at temperatures up to 160°C without coolant.
SEO Tags:
Category:
- 产品描述
-
ELT250 is woven from shrink-resistant synthetic fibers (pre-oxidized polyacrylonitrile filaments) and impregnated with a graphite-particle-containing PTFE emulsion, silicone-free. Compared to traditional carbon fiber packing, it eliminates brittleness and is suitable for higher linear velocities. The carbon fibers have high strength and good thermal conductivity, while the PTFE and graphite provide excellent lubrication, so this packing will not wear the shaft and can be used for a long time. This packing can be used in weakly acidic, weakly alkaline, and media containing a small amount of solid particles, suitable for dynamic and static sealing, mainly used in centrifugal pumps, plunger pumps, mixers, agitators, and valves. Without coolant, it can be used with hot water up to 160°C, and with cooling, it can be used with hot water up to 207°C. It is especially suitable for pumps with hot water, condensate, and high-temperature heat carriers.
ELT250 is woven from shrink-resistant synthetic fibers (pre-oxidized polyacrylonitrile filaments) and impregnated with a graphite-particle-containing PTFE emulsion, silicone-free. Compared to traditional carbon fiber packing, it eliminates brittleness and is suitable for higher linear velocities. The carbon fibers have high strength and good thermal conductivity, while the PTFE and graphite provide excellent lubrication, so this packing will not wear the shaft and can be used for a long time. This packing can be used in weakly acidic, weakly alkaline, and media containing a small amount of solid particles, suitable for dynamic and static sealing, mainly used in centrifugal pumps, plunger pumps, mixers, agitators, and valves. Without coolant, it can be used with hot water up to 160°C, and with cooling, it can be used with hot water up to 207°C. It is especially suitable for pumps with hot water, condensate, and high-temperature heat carriers.
Product Inquiry
If you are interested in our products, please fill out the form below and we will contact you as soon as possible.
Related Products
ELT142 packing rings are molded from low-sulfur expanded graphite, with precise dimensions and controllable density, and without any added fillers or binders. The graphite purity is greater than 98%, eliminating the need for further anti-corrosion treatment. Generally, the cross-section of the packing ring is square, but it can also be wedge-shaped or V-shaped, the latter two being suitable for high-pressure applications. Molded from pure flexible graphite with a metal liner, reinforcing materials such as stainless steel foil, mesh, or others are effective. To prevent slow oxidation of the packing, a design with stainless steel end caps is necessary. Corrosion inhibitors added as sacrificial anodes effectively protect the stem and packing. It possesses the characteristics of expanded graphite and can withstand severe...
Graphite corrugated tape (with adhesive)
Graphite corrugated strip - Graphite sheet is cut into strips using a high-precision lathe, and then rolled into a corrugated shape by a special textured roller, called expanded graphite corrugated strip. Model ELT141 is a self-adhesive backed graphite corrugated strip. Compared with traditional graphite slitting machines, lathe processing will not damage the graphite roll material. It is often used as a filling material for winding gaskets, and for making expanded graphite packing rings, and as a gasket in emergency maintenance. With self-adhesive backing, it is easy to install. When used as a packing gland packing, the graphite strip is directly wrapped around the shaft of the pump or valve, and after winding to a certain size, it is pressed with a pressure cover. For small diameter valves
ELT200-6 outsourced nickel wire graphite line
This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials, and is further reinforced with various metal mesh outer layers.
ELT200-5 outsourced nickel wire graphite line - round
This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials, and is further reinforced with various metal mesh outer layers.
Embedded nickel wire graphite line in ELT200-4
This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials.
ELT200-3 carbon fiber graphite yarn
This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials.
