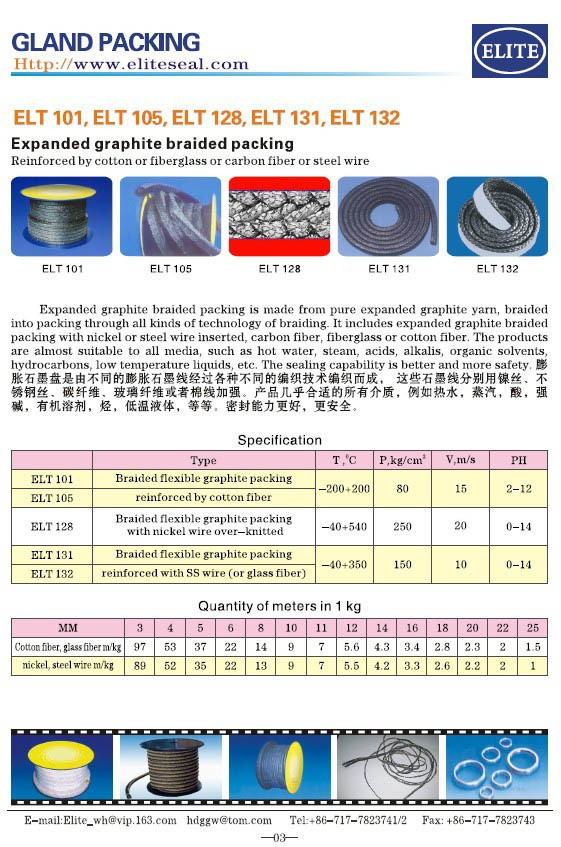

Expanded graphite packing

Product Overview： This sealing product is a flexible braided packing made of expanded graphite yarn. For simple stuffing box installations, the use of braided pure graphite packing ELT101A can easily achieve sealing. Except for strong oxidants, this packing is suitable for hot water, high-temperature high-pressure steam, heat transfer fluids, hydrogen, ammonia water, organic solvents, hydrocarbons, cryogenic liquids, etc. ELT101A packing is a unique general-purpose sealing material.

SEO Tags:

Category:

Pan Gen series

Contact Phone:

0717-7823741 / 7823742

Product Inquiry

Related Products

产品描述

　　This sealing product is a flexible packing made from braided expandable graphite yarn. For simple stuffing box installations, using packing ELT101A, made from pure graphite braid, can easily achieve a sealing effect. Besides strong oxidizers, this packing is suitable for hot water, high-temperature high-pressure steam, heat transfer fluids, hydrogen, ammonia water, organic solvents, hydrocarbons, cryogenic liquids, etc. ELT101A packing is a unique, general-purpose sealing material.

　　This sealing product is a flexible packing made from braided expandable graphite yarn. For simple stuffing box installations, using packing ELT101A, made from pure graphite braid, can easily achieve a sealing effect. Besides strong oxidizers, this packing is suitable for hot water, high-temperature high-pressure steam, heat transfer fluids, hydrogen, ammonia water, organic solvents, hydrocarbons, cryogenic liquids, etc. ELT101A packing is a unique, general-purpose sealing material.

Product Inquiry

If you are interested in our products, please fill out the form below and we will contact you as soon as possible.

Related Products

Textile braided packing ring

PTFE packing seal ring

Graphite sealing ring

ELT142 packing rings are molded from low-sulfur expanded graphite, with precise dimensions and controllable density, and without any added fillers or binders. The graphite purity is greater than 98%, eliminating the need for further anti-corrosion treatment. Generally, the cross-section of the packing ring is square, but it can also be wedge-shaped or V-shaped, the latter two being suitable for high-pressure applications. Molded from pure flexible graphite with a metal liner, reinforcing materials such as stainless steel foil, mesh, or others are effective. To prevent slow oxidation of the packing, a design with stainless steel end caps is necessary. Corrosion inhibitors added as sacrificial anodes effectively protect the stem and packing. It possesses the characteristics of expanded graphite and can withstand severe...

Graphite corrugated tape (with adhesive)

Graphite corrugated strip - Graphite sheet is cut into strips using a high-precision lathe, and then rolled into a corrugated shape by a special textured roller, called expanded graphite corrugated strip. Model ELT141 is a self-adhesive backed graphite corrugated strip. Compared with traditional graphite slitting machines, lathe processing will not damage the graphite roll material. It is often used as a filling material for winding gaskets, and for making expanded graphite packing rings, and as a gasket in emergency maintenance. With self-adhesive backing, it is easy to install. When used as a packing gland packing, the graphite strip is directly wrapped around the shaft of the pump or valve, and after winding to a certain size, it is pressed with a pressure cover. For small diameter valves

ELT200-6 outsourced nickel wire graphite line

This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials, and is further reinforced with various metal mesh outer layers.

ELT200-5 outsourced nickel wire graphite line - round

This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials, and is further reinforced with various metal mesh outer layers.

Embedded nickel wire graphite line in ELT200-4

This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials.

ELT200-3 carbon fiber graphite yarn

This product uses graphite as its main raw material, with added nickel-chromium wire and other reinforcing materials.
