Product Center
ELT600 is woven from composite synthetic fiber yarn impregnated with PTFE emulsion (without lubricant or oil). This type of packing provides excellent sealing against alkalis, weak acids, solvents, steam, and oils, and is widely used for sealing rotating shafts, valves, etc.

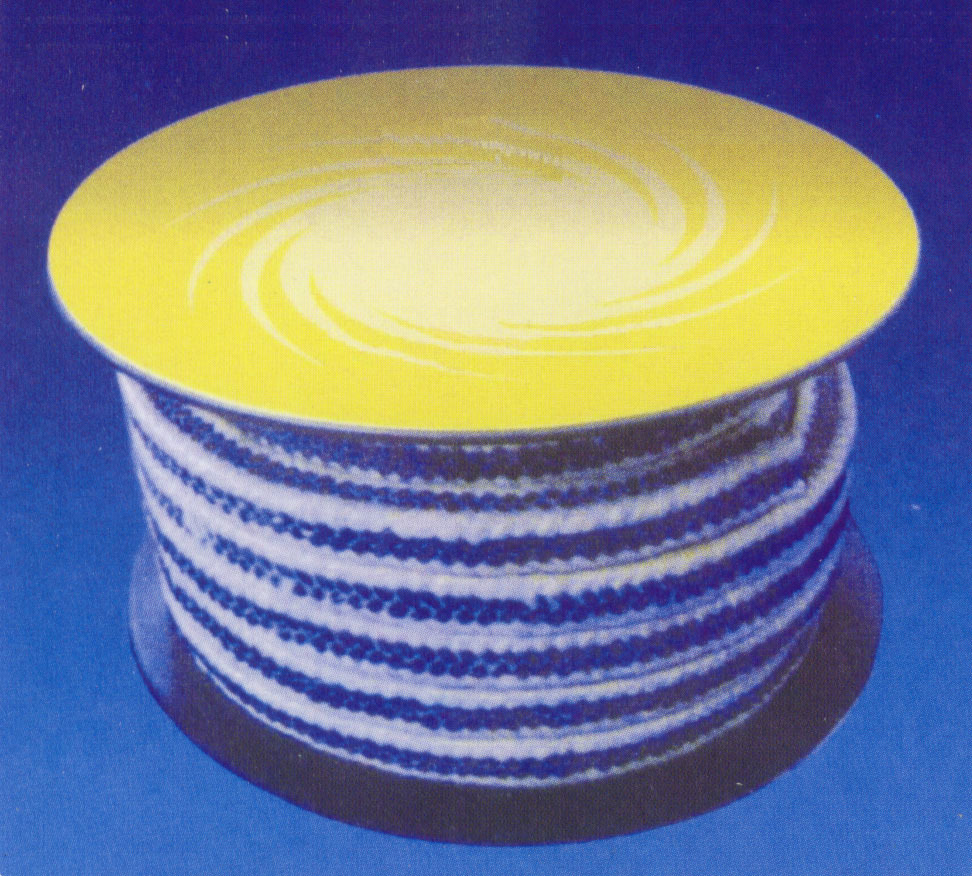

This packing is made of aramid and black PTFE yarn, braided in a zebra-like pattern and impregnated with a special lubricant. Compared to ELT571, it has superior lubrication and heat transfer. It also combines the strength of aramid with the low friction and high thermal conductivity of black PTFE. It is widely used in reciprocating pumps, mixers, reactors, and valves in petrochemical, papermaking, sugar, and power plants.
Polytetrafluoroethylene aramid fiber braided packing
ELT571B is a packing made of PTFE fiber yarn mixed with graphite and reinforced with aramid yarn. It prevents gas leakage under high pressure and high temperature. It has good sliding speed and thermal conductivity, which allows it to seal high-pressure piston pumps during long-term operation. It is also suitable for sealing ordinary water, sewage, hot water, oil, grease, and weakly acidic or alkaline environments.
The ELT571A packing is made of pure PTFE and graphite composite woven together, with excellent corrosion resistance. It is widely used in pumps for sealing in the chemical, petrochemical, and pharmaceutical processing industries.

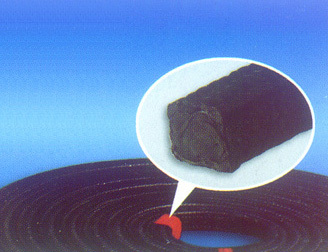

Polytetrafluoroethylene graphite packing
ELT510 is made of polytetrafluoroethylene yarn and special graphite powder composite, and contains silicone resin lubricant. It has a very low coefficient of friction and is very effective in sealing large leaks and high-temperature heat conduction. It is widely used in pump shafts and chemical equipment seals.

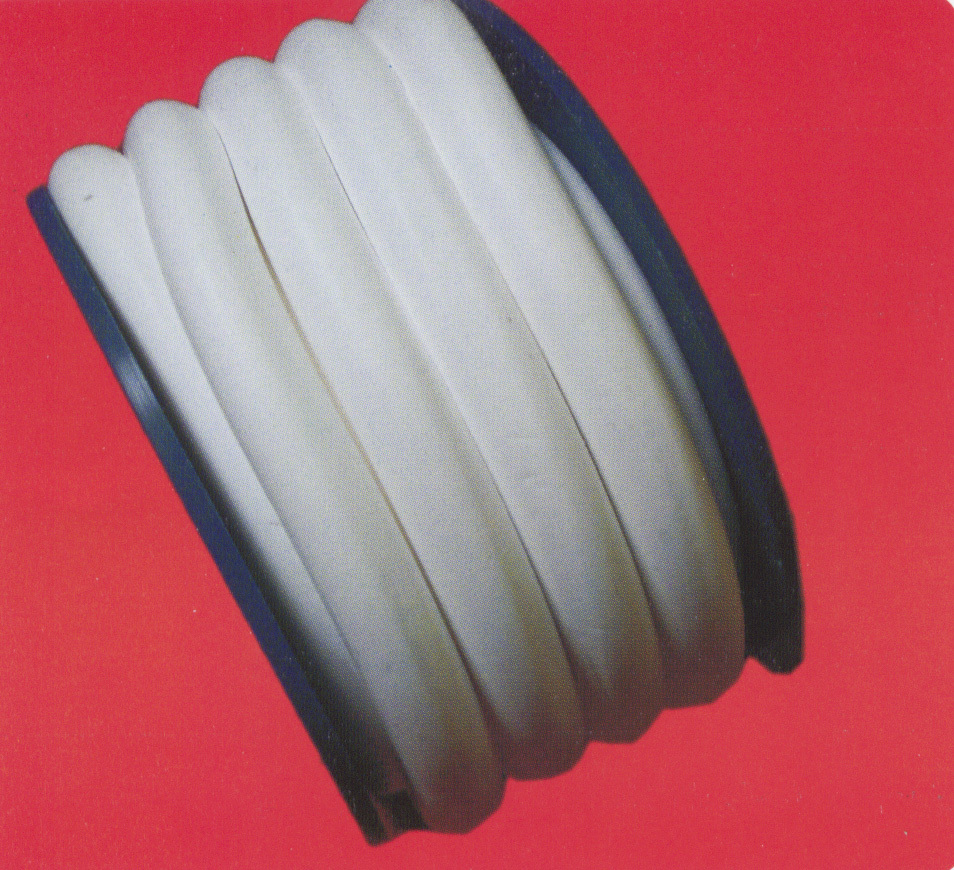

ELT505 is a novel improved filler material made from 100% expanded PTFE. It features non-aging properties and a low coefficient of friction. Furthermore, common chemical reagents have no effect on this filler, and the product itself does not affect various media. It is widely used in the sealing of pump shafts in food processing and petroleum refining.

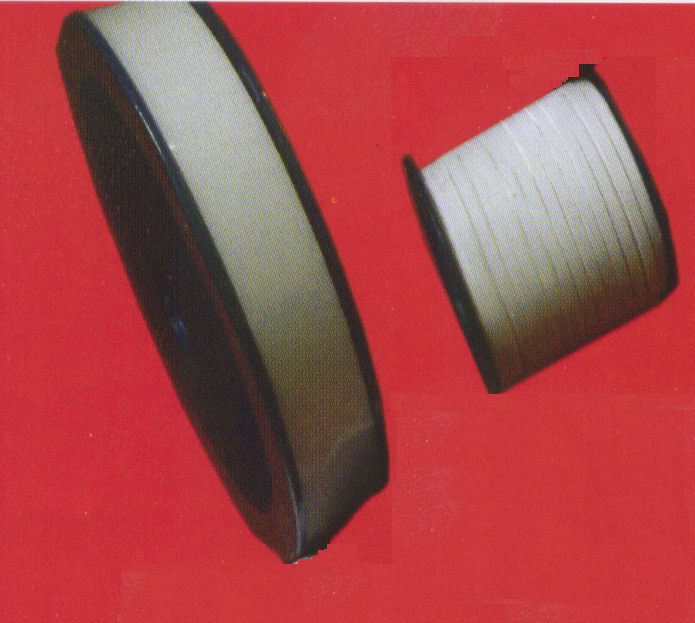

Self-adhesive expanded PTFE packing
ELT502 is a novel improved filler material made of 100% expanded PTFE. It features non-aging properties and a low coefficient of friction. Furthermore, common chemical reagents have no effect on this filler, and the product itself does not affect various media. It is widely used in the sealing of pump shafts in food processing and petroleum refining.

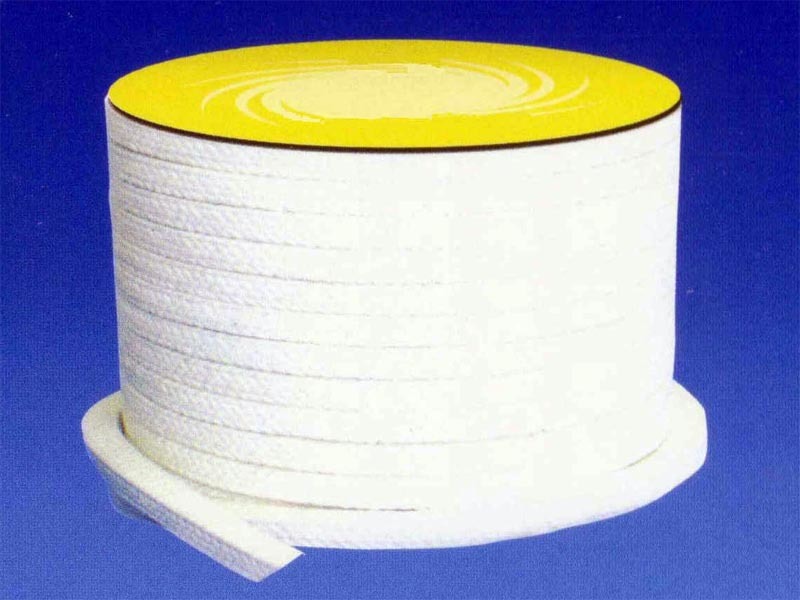

The ELT500B packing is made of pure PTFE yarn without any PTFE emulsion or lubricant. Due to its excellent flexibility and expansion properties, it is particularly effective in sealing stuffing boxes and shafts. It is widely used in equipment sealing in the chemical, food, and pharmaceutical industries.
